The Cascade Series by North Star is an expansion of the original North Star flake ice maker line that has been trusted in the industry since 1950. The Cascade Series includes a line of durable, commercial grade flake ice makers for industrial applications. With production capacities ranging from 1,100 lbs to 11 US tons of flake ice per day, they are ideal for initial cooling, top icing, and transporting of perishable products.

Constructed with heavy duty, non-corrosive components, these flake ice makers offer smooth operation and require minimal maintenance while producing quality, sub-cooled flake ice.

Cascade Series Flake Ice Makers - Features Sheet

Equipment Features


The Cascade Series by North Star is a line of commercial flake ice machines with production capacities ranging from 1,100 lbs to 11 US tons of flake ice per day. They are ideal for grocery and supermarket applications, meat processing, commercial bakeries, and retail and wholesale markets.

Heavy duty, non-corrosive components

  • Built with durable, long lasting materials to provide decades of continous operation
  • Limited moving parts means you will have minimal wear and tear
  • Stationary, insulated freezing surface offers more efficient ice making

Produces dry, sub-cooled flake ice

  • The best choice ice for the fastest heat removal products
  • Superior surface area coverage for faster, more efficient cooling
  • Flat shape will not indent or damage perishable product
  • Free-flowing, easy to move and store


Makes sub-cooled flake ice

  • The best type of ice for food applications
  • Superior surface area coverage for faster, more efficient cooling
  • Flat shape will not harm perishable products
  • Free-flowing, easy to move and store
  • Blends easily with other foods without damaging mixing equipment

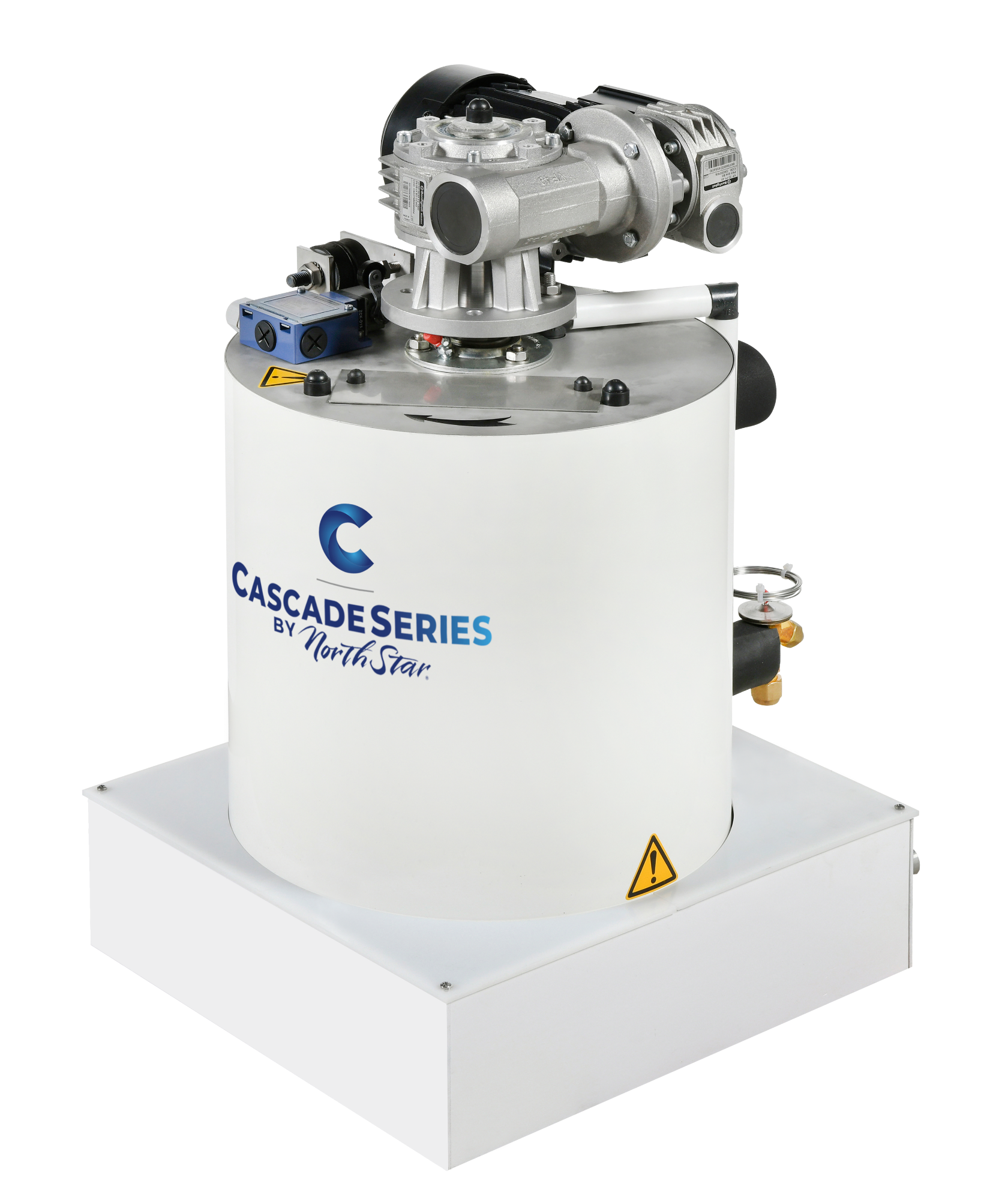

  • C1

    Capacity

    1,100 lbs
    Length

    20 in
    508 mm
    Width

    14 in
    355.6 mm
    Height

    24 in
    ​609.6 mm

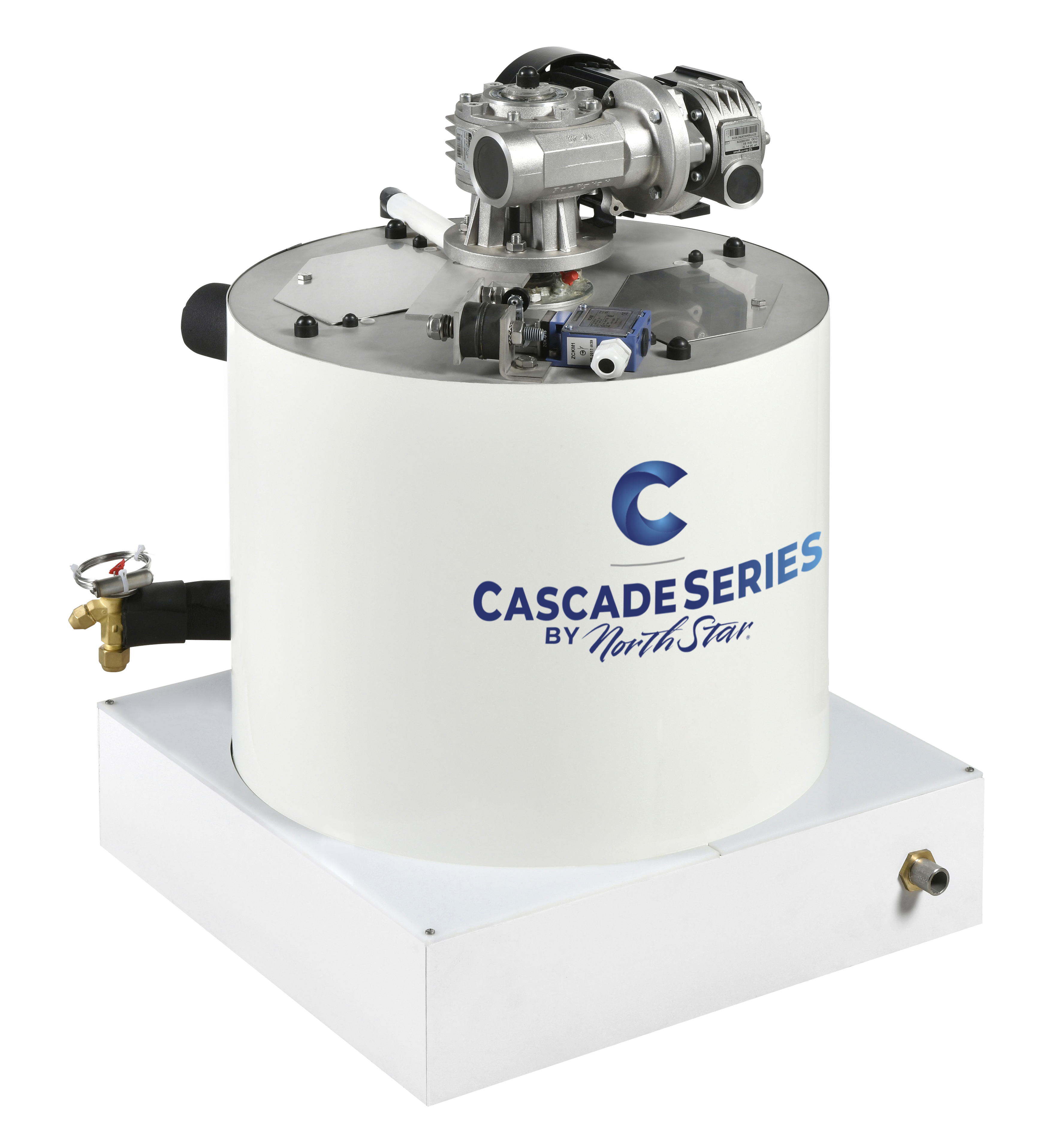

  • C2

    Capacity

    1,400 - 2,200 lbs
    Length

    26 in
    660.4 mm
    Width

    20 in
    508 mm
    Height

    28 in
    ​711.2 mm

  • C5

    Capacity

    2 - 4 T
    1.8 - 3.6 MT
    Length

    35 in
    889 mm
    Width

    28 in
    711.2 mm
    Height

    50 in
    ​1270 mm

  • C7

    Capacity

    3.3 - 3.9 T
    3 - 3.53 MT
    Length

    35 in
    889 mm
    Width

    28 in
    711.2 mm
    Height

    50 in
    ​1270 mm

  • C12*

    Capacity

    5 - 7 T
    4.5 - 6.3 MT
    Length

    47 in
    1193 mm
    Width

    36 in
    914 mm
    Height

    70 in
    ​1778 mm

  • C20*

    Capacity

    7 - 11 T
    6.3 -  9.9 MT
    Length

    51 in
    1295 mm
    Width

    38 in
    965 mm
    Height

    80 in
    ​2032 mm

  • S5

    Capacity

    2.5 T
    2.26 MT
    Height

    27 in
    686 mm
    Width

    25 in
    635 mm
    Length

    42 in
    ​1067 mm

Helpful Technical Information


Use the Capacity Calculator below to size the correct ice maker for your project. Download helpful brochures, specification sheets, and other technical data in our Resources Library.
