Temporary Storage When You Need It

Buffer Tanks and Case Ice Dispensers are designed to provide temporary storage and deliver either large or small quantities of ice when quick response and even ice flow are critical.


Buffer Tank Feature Sheet

Buffer Tank for Concrete Cooling Feature Sheet

Case Ice Dispenser Feature Sheet

Equipment Features

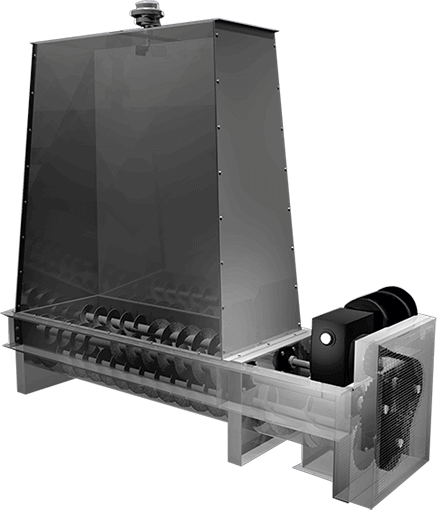

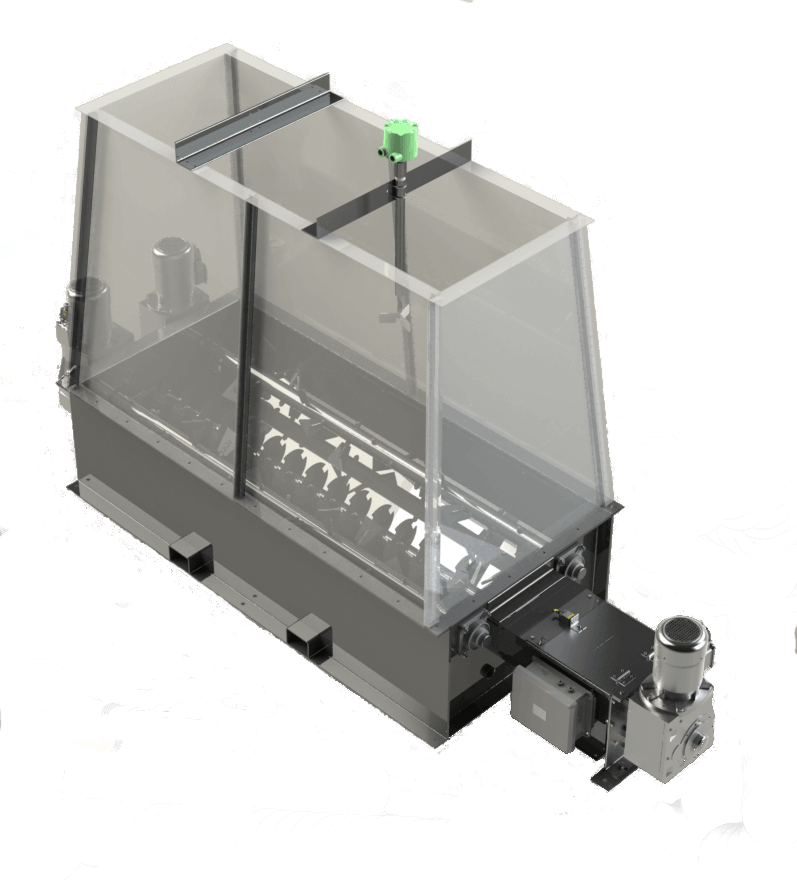

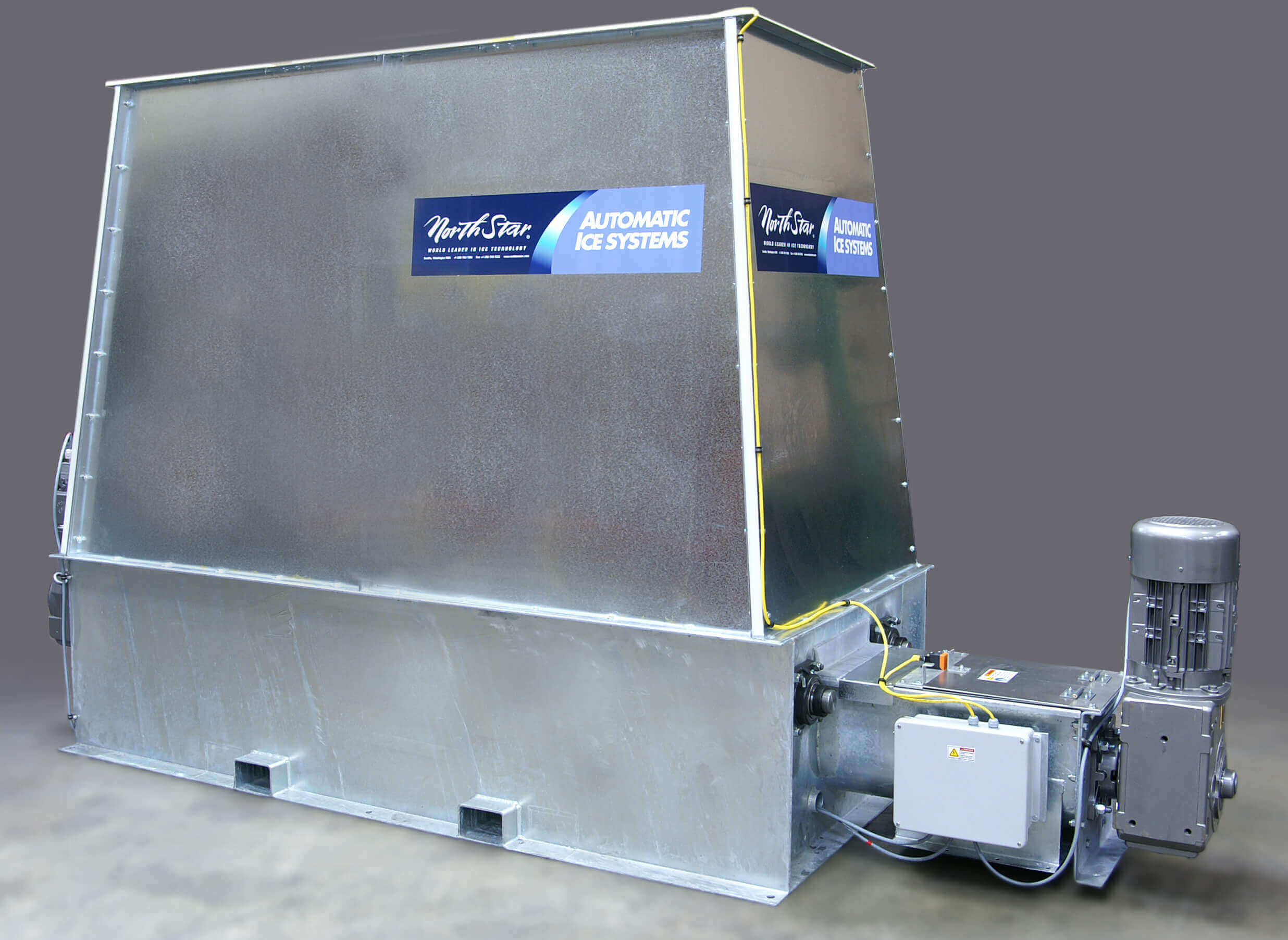

Buffer tanks

Standard Buffer Tank Features:

  • Provides ice on demand for applications where quick response is critical
  • Dispenses ice at high delivery rates - up to 24 tons per hour
  • Fully insulated hopper
  • High-level sensor automatically regulates when Buffer Tank has reached capacity
  • Shipped fully assembled with installation instructions
  • Fork lift channels included - prevents damage during transportation and lifting

Case ice dispensers

Standard Case Ice Dispenser Features:

  • Short term storage bin designed to hold up to 1 US ton (0.9 metric ton)
  • Dispensing small quantities of ice repeatedly, ideal for icing cases and cartons
  • Discharge rates up to 7 tons per hour
  • Feed bin is automatically fed from the main delivery system
  • Insulated aluminum frame - *Optional Stainless Steel frame available
  • High-level sensor automatically regulates when Case Icer has reached capacity
  • Shipped fully assembled with installation instructions

Specifications

  • Buffer Tank - 2 Ton Capacity Single Drive (to be updated)

    Capacity

    2.0 T
    1.8 MT
    Delivery Rate

    24 US TPH
    21 MTPH
    Height

    7' -0"
    2134 mm
    Width

    48' -1/2"
    1232 mm
    Length

    11' -4 3/4"
    ​3473 mm

  • Buffer Tank - 2 Ton Capacity Multi Drive

    Capacity

    2.0 T
    1.8 MT
    Delivery Rate

    24 US TPH
    21 MTPH
    Height

    7' -0"
    2134 mm
    Width

    48' -1/2"
    1232 mm
    Length

    11' -4 3/4"
    ​3473 mm

  • Buffer Tank - 3 Ton Capacity Single Drive

    Capacity

    3.3 T
    2.9 MT
    Delivery Rate

    40 US TPH
    36.2 MTPH
    Height

    8' -0"
    2438 mm
    Width

    5' -1 1/2"
    1562 mm
    Length

    13' -4 3/4"
    ​4083 mm

  • Case Ice Dispenser - 1 Ton Capacity

    Capacity

    1.0 T
    0.9 MT
    Delivery Rate

    7.0 US TPH
    6.3 MTPH
    Height

    6' -8"
    2032 mm
    Width

    28 -9/16"
    736 mm
    Length

    7' -8"
    ​2337 mm

Helpful Technical Information


Use the Capacity Calculator below to size the correct ice maker for your project. Download helpful brochures, specification sheets, and other technical data in our Resources Library.
